Carbon Fiber

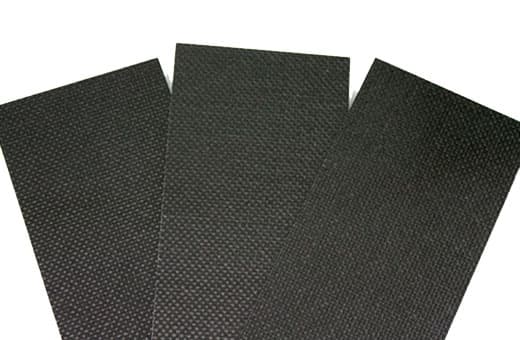

3 pieces of plain weave carbon fiber

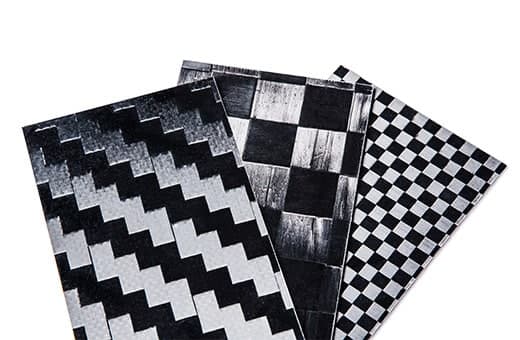

Group of 3 geometrical Carbon Fiber Sheets

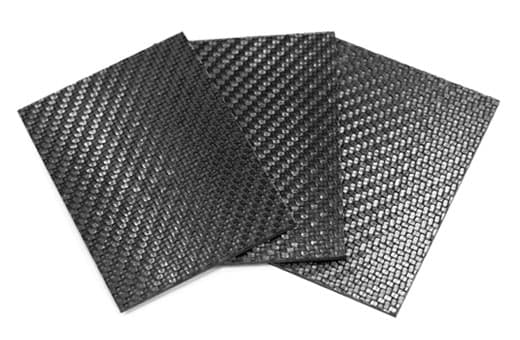

3 pieces of twill weave carbon fiber
Marbled Black Carbon Fiber Stacked on top of each other.

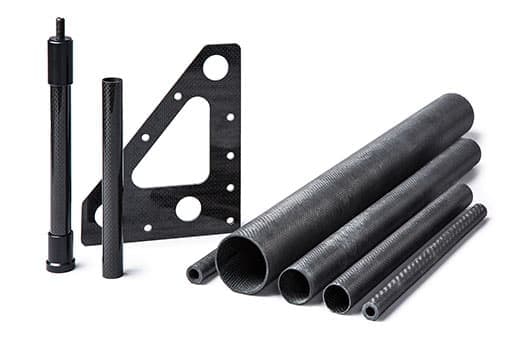

Combination of Fabricated Carbon Fibers Parts

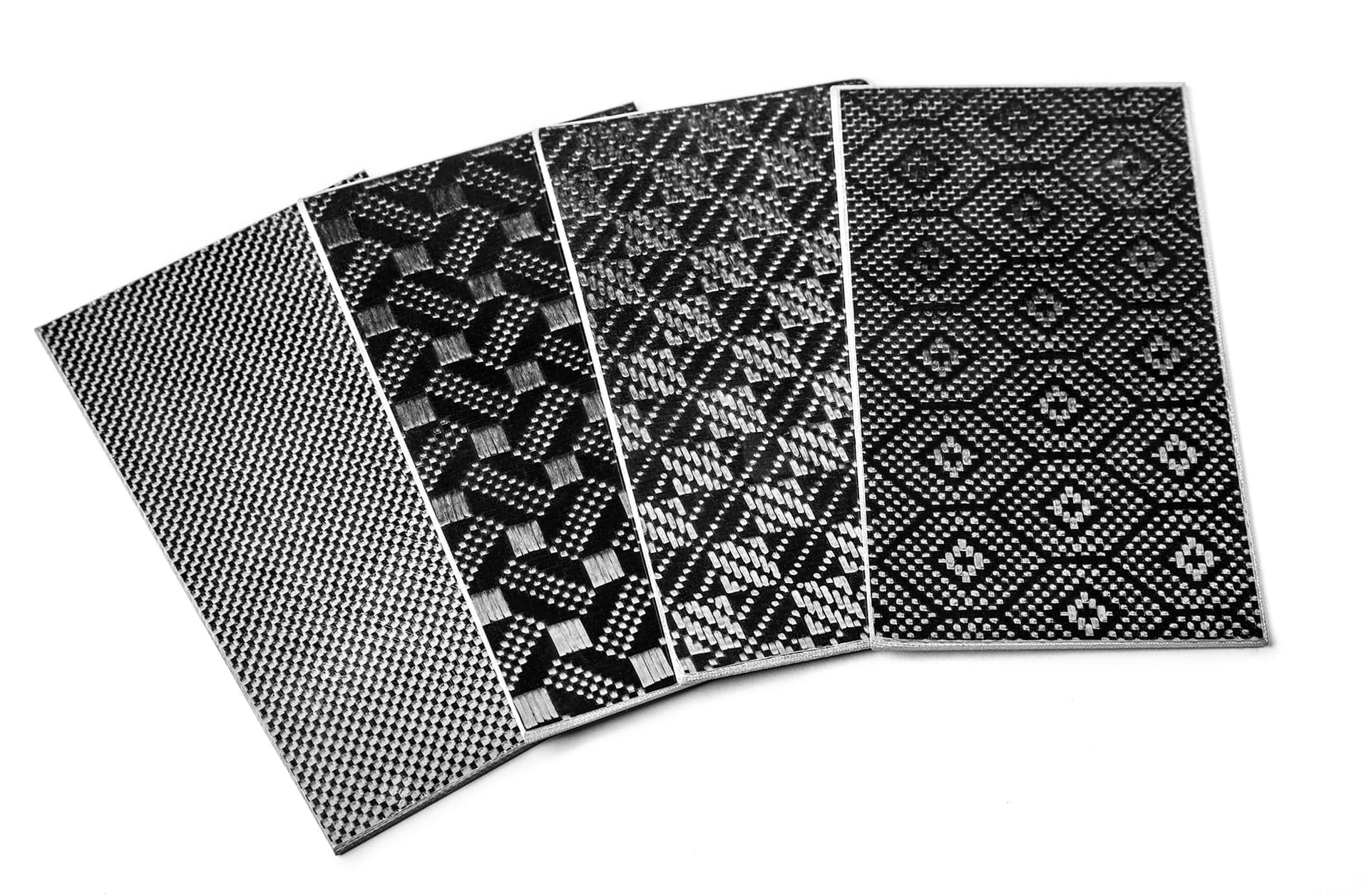

Group of 4 geometrical Carbon Fiber Sheets

CURRENT, INC. manufactures Carbon Fiber sheets, tubing, rods, and molded parts. Our Carbon Fiber is strong yet lightweight, making the material ideal for motorsports, aircraft, and marine equipment.

Carbon Fiber is available in different weaves to meet your every need.

Carbon Fiber Weave Graphic

Plain Weave

Fibers are interlocked in an alternating pattern over and under each other. Plain weave fabrics have good stability and are ideally suited for flat panels and minimal contour radius.

Carbon Fiber Weave Graphic

Satin Weave

Satin weaves are typically available in four, five, or eight harness satin. The satin weaves do not intersect at every tow. Instead the tows will float over several intersections and interlock under one. Satin weaves are easily draped to conform to difficult parts.

Carbon Fiber Weave Graphic

Twill Weave

Twills are available in 2×2, 3×3, and 4×4 twill weaves. The “twill line,” or diagonal rib, characterizes the weave. Each tow warp end floats over two or more picks. Twills are very pliable and have excellent drape while maintaining stability.

Carbon Fiber Weave Graphic

Basket Weave

A variation of the plain weaves, the multiple warp ends fill tows of yarn and are woven together while being alternately interlocked over and under each other to make heavy fabrics.

FAQs

Our company can fabricate carbon fiber in sheets and tubes. We have various fabric style options like plain weave, satin weave, twill weave, basket weave and uni-tape which each serve different functions to best fit your needs.

To start an order, go to our Contact page and fill out a form detailing your interests. This will be received by us, and we will coordinate with you to complete the order. Alternatively, give us a call and we will be happy to work with you in that way as well. You can reach our main office at (203) 469-1337.

Our lead times vary based on the market and on the products that you are interested in, but we typically deliver around 4 weeks or less from the order being placed, depending on the material we have in stock.
