Custom Fabrication

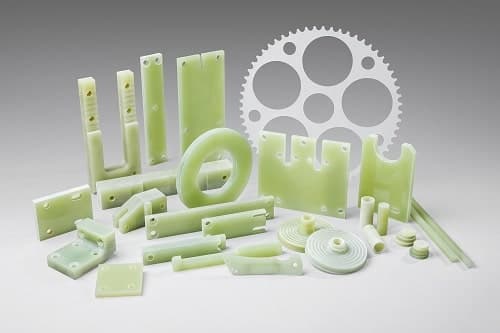

g10 Fabricated Parts

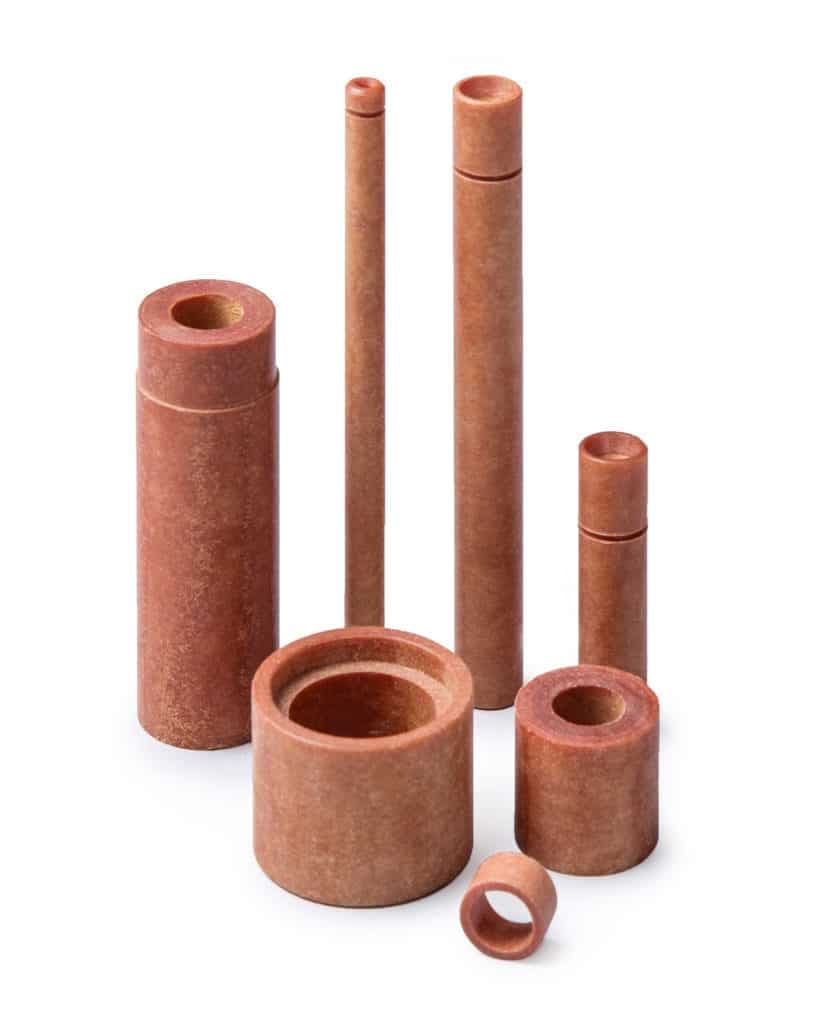

Group of small paper phenolic spacers

CURRENT, INC. manufactures and stocks an extensive line of insulating laminates for Custom Fabrication. Services include cutting, milling, slotting, shearing, drilling, tapping, turning, boring, routing, and sanding to exact specifications.

CURRENT, INC. can provide products regardless of what you assemble or manufacture, and this will help to improve your product and your cost of production. By sending us your blueprints or specifications, Current, Inc. will be able to provide you with a free quote. If interested in any of the services or products listed below, feel free to contact us!

Available in NEMA Grades:

XX

MIL-I-24768/11

Paper based reinforced laminate with a phenolic resin binder. Good machining and threading qualities and fair punching used for electrical applications with great moisture resistance.

XXX

MIL-I-24768/10

Paper based reinforced laminate with a phenolic resin binder. Insulating Stand-Offs and other applications requiring excellent electrical insulation and moisture resistance in high humidity conditions.

Canvas (C)

MIL-I-24768/16

Woven cotton fabric based material with a phenolic resin binder. Applications include gears and bearings where high impact strength is required.

Canvas Electrical Grade (CE)

MIL-I-24768/14

Woven cotton fabric based material/phenolic resin. Ideal in electrical applications where mechanical strength is needed.

Linen (L)

MIL-I-24768/15

Woven fine cotton cloth/phenolic resin. For machining and mechanical applications requiring a fine edge detail and appearance is required.

Linen Electrical Grade (LE)

MIL-I-24768/13

Woven fine cotton cloth similar to L with better moisture and acid resistance, best for machined parts with smooth edges.

G-3

MIL-I-24768/18

Continuous filament woven glass fabric with phenolic resin. This material has excellent flexural, compressive, and impact strength. It can be used for some structural applications such as seals, acid-resistant gaskets, oven internals.

G-5, G-9

MIL-I-24768/8, MIL-I-24768/1

Continuous filament woven glass fabric with a melamine resin binder. High mechanical strength at room temperature. It is categorized as one of the hardest laminate grades. Fair dielectric loss and electric strength properties under dry conditions. Excellent arc resistance. Meets UL 94.

G-10

MIL-I-24768/2

Continuous filament woven glass fabric laminated with an epoxy resin binder. Offers high mechanical strength at room temperature. Good dielectric loss and electrical strength in both dry and humid conditions.

G-10/FR4

MIL-I-24768/27

Continuous woven glass fabric laminated with an epoxy resin that is flame retardant of at least Class I in accordance with NEMA test method 7.11.

G-11/FR5

MIL-I-24768/28

Similar in composition and properties to Grade G-10/FR4 but more suitable for continuous use at higher temperature. G-11 holds at least 50% of its flexural strength at continuous elevated operating temperatures as high as 300°F.

To get in touch with our dedicated representatives, call (203) 469-1337, Fax (203) 467-8435, or e-mail us.

FAQs

To start an order, go to our Contact page and fill out a form detailing your interests. This will be received by us, and we will coordinate with you to complete the order. Alternatively, give us a call and we will be happy to work with you in that way as well. You can reach our main office at (203) 469-1337.

Our lead times vary based on the market and on the products that you are interested in, but we typically deliver around 4 weeks or less from the order being placed, depending on the material we have in stock.
