Spacers and Standoffs

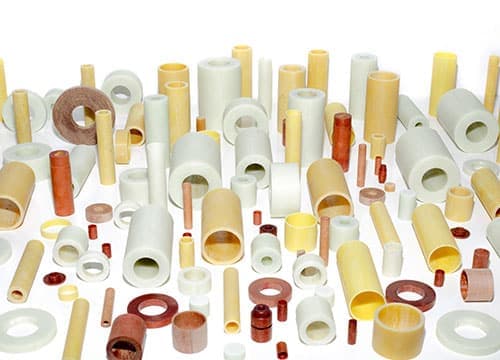

Group of Plastic Spacers

CURRENT, INC. Laminated Spacers and threaded Standoffs are made of thermosetting resins (Phenolic, Epoxy, or Melamine), convolutedly wound under high pressure and heat with other appropriate materials, which have proved themselves in a wide variety of contemporary applications. Their insulating properties, resistance to extreme temperatures, and light weight make them particularly are desirable for use in electronic and electrical equipment. Some further benefits include resistance to compression, impact, vibration, corrosion, moisture and the reduction of noise. The material is easy to saw, drill, tap, thread, machine, polish, and punch with ordinary tools.

Although our Standoffs and Spacers are especially suited for use in electrical equipment, there are hundreds of other applications where their properties and characteristics will benefit product design. Not only will they benefit your products, but they could save you money also!

CURRENT INC. manufactures and stocks a wide variety of types and sizes for immediate shipment. We will also custom-fabricate Standoffs and Spacers — or modify stock items — to meet your special requirements. Tight specifications and close tolerances are no problem. Whatever you manufacture or assemble, there’s a Current product that will improve your product and your savings. We’ll always offer you a free quote. Just send us your requirements and/or blueprints. For further information, call (203) 469-1337, fax (203) 467-8435, or e-mail us.

CURRENT, INC. realizes that you may need a shipment quickly, and therefore, we make sure to manufacture and stock a wide variety of sizes and types of our Spacers and Standoffs so they are ready for immediate shipping. If in need of custom fabrication, we are also equipped to modify stock items or customize new orders to meet any of your unique requirements. Even if you need them for close tolerances or tight specs, we can still accommodate.

General Characteristics
of Laminated Tubing

GRADE XX
Suitable for usual electric applications. Good machinability, most particularly with threading qualities. Not as strong mechanically as grade X tubes but more moisture resistant. Made from phenolic resin with absorbent paper.

GRADE XXX
Suitable for high humidity applications. Has minimum cold flow characteristics and good machinability. Made from phenolic resin with absorbent paper.

GRADE C
A strong and tough material intended for applications requiring high impact strength. Easily machined but leaves a rough edge, so not recommended for electrical uses. Made from cotton weighing 4 oz./sq.yd. and phenolic resin.

GRADE LE
Made from a cotton material weighing less than 4 oz./sq.yd. Suitable for electrical applications requiring greater toughness than Grade XX. Better in machining properties and appearance than grade C. Although, not recommended for electrical use over 600 volts.

Spacers
Available in Phenolic, Nylon and Delrin

Clearance for screw

size
#4
#6
#8
#10
1/4-20

I.D.
.125
.145
.171
.196
.265

O.D.
.250
.250
.250
.312
.500

Cut View of Tube

Specify length as — (number) Example: 4-500 signifies a spacer .500″ long with a clearance for a #4 screw.

Properties of Laminated
& Reinforced Tubing

NEMA GRADE

X
XX
XXX
C
LE

NEMA GRADE

X
XX
XXX
C
LE

Min. Flexural Strength 1/16″ P.S.I.

LW

CW

25,000
15,000
13,500
17,000
15,000
22,000
14,000
11,800
16,000
13,500

Tensile Str. psi

LW

CW

20,000
16,000
15,000
10,000
12,000
16,000
13,000
12,000
8,000
8,500

Water Absorption Max. 1/16″ %

6.00
2.00
1.40
4.40
1.95

Comp. Str. psi

Flat

Edge

36,000
34,000
32,000
37,000
37,000
19,000
23,000
25,000
23,500
25,000

Min. Dielectric Strength 1/16″ Thickness KV


40
50
15
40

Rockwell
Hardness

Specific
Gravity

110
105
110
103
105
1.10
1.34
1.32
1.36
1.33
Threaded Standoffs
Available in Phenolic, Nylon and Delrin

Stock #

4T
6T
8T
10T
1/4-20

Thread Size
4-40
6-32
8-32
10-32
1/4-20

O.D.

.250
.250
.250
.312
.500

Specify length as — (number)
Example: 6T-750 signifies a 6-32 threaded spacer
.750″ long.

CURRENT, INC. has made it a point to be there for our customers with the right product to fit any of your specifications, despite whatever you plan on assembling or manufacturing. To obtain a free estimate, all you need to do is send us a copy of your blueprints or specifications. You can contact any of our experts by e-mail, Fax (203) 467-8435, or phone (203) 469-1337

Start your Spacer-Standoff Order









    yesno

    FAQs

    We make spacers and standoffs for electronic & electrical equipment, circuit boards, automotive parts, and testing equipment. Available materials for spacers and standoffs include canvas, linen, paper, G-10, FR4, G-11, FR5, and carbon fiber

    To start an order, go to our Contact page and fill out a form detailing your interests. This will be received by us, and we will coordinate with you to complete the order. Alternatively, give us a call and we will be happy to work with you in that way as well. You can reach our main office at (203) 469-1337.

    Our lead times vary based on the market and on the products that you are interested in, but we typically deliver around 4 weeks or less from the order being placed, depending on the material we have in stock.
